Interactive Demo
Test the JSCircuit Editor directly in your browser.

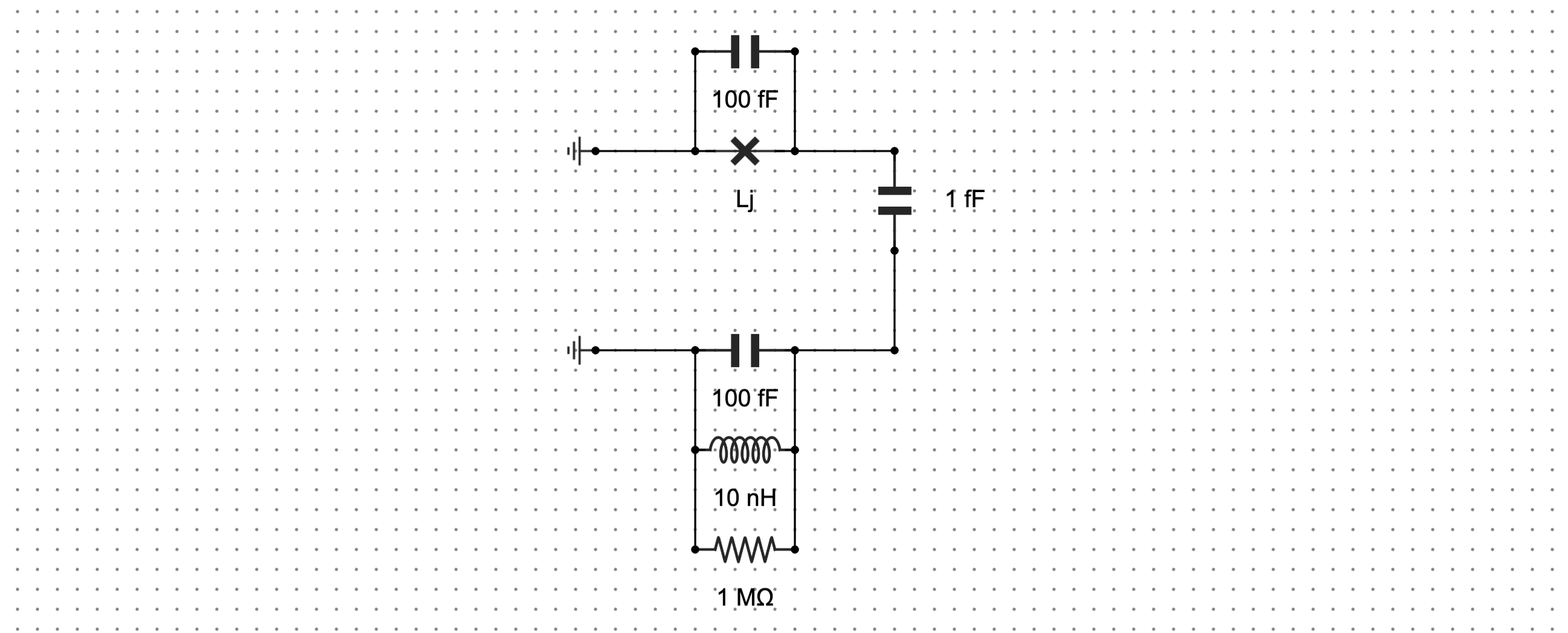

Replicate the circuit shown in the image bellow
By replicating this circuit, you will gain hands-on experience with the JSCircuit Editor's features, including adding elements, connecting them, and configuring properties.
Explore the menu options to familiarize with the features and the keystrokes to create the various elements. Make sure to save the circuit as a netlist once completed.
